Is there a CPU-Z like a freeware/open source software that detects the central processing unit (CPU) of a modern personal computer in Linux operating system?

How can I get detailed information about the CPU(s) gathered from the CPUID instruction, including the exact model of CPU(s) on Linux operating system?



There are three programs on Linux operating system that can provide CPUID information and these tools are useful to find out if specific advanced features such as virtualization, extended page tables, encryption and more:

lscpu command – Show information on CPU architecture.

x86info command – Show x86 CPU diagnostics.

cpuid command – Dump CPUID information for each CPU. This is the closet tool to CPU-Z app on Linux.

x86info

x86info is a program which displays a range of information about the CPUs present in an x86 system.

Install x86info on Debian / Ubuntu Linux

$ sudo apt-get install x86info

Install x86info on Fedora Linux

$ sudo dnf install x86info

Install x86info on RHEL/SL/CentOS Linux

$ sudo yum install x86info

Examples

Simply type the following command:

# x86info



Sample outputs:

Fig.01: Linux x86info Command To Display-x86 CPU Diagnostics Info On Linux

SEE TLB, CACHE SIZES AND CACHE ASSOCIATIVITY

# x86info -c



Sample outputs:

x86info v1.30.  Dave Jones 2001-2011

Feedback to <davej@redhat.com>.



Found 4 identical CPUs

Extended Family: 0 Extended Model: 1 Family: 6 Model: 28 Stepping: 10

Type: 0 (Original OEM)

CPU Model (x86info s best guess): Atom D510

Processor name string (BIOS programmed): Intel(R) Atom(TM) CPU D510   @ 1.66GHz



Cache info

L1 Instruction cache: 32KB, 8-way associative. 64 byte line size.

L1 Data cache: 24KB, 6-way associative. 64 byte line size. ECC.

L2 cache: 512KB, 8-way associative. 64 byte line size.

TLB info

Found unknown cache descriptors: 4f 59 ba c0

Total processor threads: 4

This system has 1 dual-core processor with hyper-threading (2 threads per core) running at an estimated 1.65GHz

SEE CPU FEATURE FLAGS LIKE AES/FPU/SSE AND MORE

# x86info -f



Sample outputs:

x86info v1.30.  Dave Jones 2001-2011

Feedback to <davej@redhat.com>.



Found 4 identical CPUs

Extended Family: 0 Extended Model: 1 Family: 6 Model: 28 Stepping: 10

Type: 0 (Original OEM)

CPU Model (x86info s best guess): Atom D510

Processor name string (BIOS programmed): Intel(R) Atom(TM) CPU D510   @ 1.66GHz



Feature flags:

fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflsh ds acpi mmx fxsr sse sse2 ss ht tm pbe sse3 dtes64 monitor ds-cpl tm2 ssse3 cx16 xTPR pdcm movbe

Extended feature flags:

SYSCALL xd em64t lahf_lm dts

Long NOPs supported: yes



Total processor threads: 4

This system has 1 dual-core processor with hyper-threading (2 threads per core) running at an estimated 1.65GHz

SEE MP TABLE SHOWING CPUS BIOS KNOWS ABOUT

# x86info -mp



Sample outputs:

x86info v1.30.  Dave Jones 2001-2011

Feedback to <davej@redhat.com>.



MP Table:

# APIC ID Version State  Family Model Step Flags

#  0  0x14  BSP, usable  6  12  10  0xbfebfbff

#  2  0x14  AP, usable  6  12  10  0xbfebfbff

…..

..

SHOW REGISTER VALUES FROM ALL POSSIBLE CPUID CALLS

# x86info -r

….

..

eax in: 0x00000000, eax = 0000000a ebx = 756e6547 ecx = 6c65746e edx = 49656e69

eax in: 0x00000001, eax = 000106ca ebx = 00040800 ecx = 0040e31d edx = bfebfbff

eax in: 0x00000002, eax = 4fba5901 ebx = 0e3080c0 ecx = 00000000 edx = 00000000

eax in: 0x00000003, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x00000004, eax = 04004121 ebx = 0140003f ecx = 0000003f edx = 00000001

eax in: 0x00000005, eax = 00000040 ebx = 00000040 ecx = 00000003 edx = 00000010

eax in: 0x00000006, eax = 00000001 ebx = 00000002 ecx = 00000001 edx = 00000000

eax in: 0x00000007, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x00000008, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x00000009, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x0000000a, eax = 07280203 ebx = 00000000 ecx = 00000000 edx = 00000503



eax in: 0x80000000, eax = 80000008 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x80000001, eax = 00000000 ebx = 00000000 ecx = 00000001 edx = 20100800

eax in: 0x80000002, eax = 20202020 ebx = 20202020 ecx = 746e4920 edx = 52286c65

eax in: 0x80000003, eax = 74412029 ebx = 54286d6f ecx = 4320294d edx = 44205550

eax in: 0x80000004, eax = 20303135 ebx = 20402020 ecx = 36362e31 edx = 007a4847

eax in: 0x80000005, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x80000006, eax = 00000000 ebx = 00000000 ecx = 02006040 edx = 00000000

eax in: 0x80000007, eax = 00000000 ebx = 00000000 ecx = 00000000 edx = 00000000

eax in: 0x80000008, eax = 00003024 ebx = 00000000 ecx = 00000000 edx = 00000000

….

..

To see all information, type:

# x86info -a

cpuid

cpuid dumps detailed information about the CPU(s) gathered from the CPUID instruction, and also determines the exact model of CPU(s) from that information. It dumps all information available from the CPUID instruction. The exact collection of information available varies between manufacturers and processors. The following information is available consistently on all modern CPUs:

vendor_id

version information (1/eax)

miscellaneous (1/ebx)

feature information (1/ecx)

Install cpuid on Debian / Ubuntu Linux

$ sudo apt-get install cpuid

Install cpuid on Fedora Linux

$ sudo dnf install cpuid

Install cpuid on RHEL/SL/CentOS Linux

$ sudo yum install cpuid

Examples

Simply type the following command (this command provides lots of useful information including list of all features in human readable format):

# cpuid

# cpuid | less

# cpuid | grep  something



Sample outputs:

Fig.02: Linux cpuid Command To Dump CPUID information

DISPLAY INFORMATION ONLY FOR THE FIRST CPU

# cpuinfo -1

USE THE CPUID INSTRUCTION (DEFAULT AND VERY RELIABLE)

# cpuinfo -i

USE THE CPUID KERNEL MODULE (NOT SEEMS TO BE RELIABLE ON ALL COMBINATIONS OF CPU TYPE AND KERNEL VERSION)

# cpuinfo -k

SEARCH FOR SPECIFIC CPU FEATURE

Is virtualization supported (see below for flags)? ##

# cpuid -1 | egrep –color -iw  vmx|svm|ept|vpid|npt|tpr_shadow|vnmi|flexpriority

VMX: virtual machine extensions = true

Is advanced encryption supported? ##

# cpuid -1 | egrep –color -i  aes|aes-ni

AES instruction = true



Some important flags for sysadmins on Linux based system:

vmx – Intel VT-x, basic virtualization.

svm – AMD SVM, basic virtualization.

ept – Extended Page Tables, an Intel feature to make emulation of guest page tables faster.

vpid – VPID, an Intel feature to make expensive TLB flushes unnecessary when context switching between guests.

npt – AMD Nested Page Tables, similar to EPT.

tpr_shadow and flexpriority – Intel feature that reduces calls into the hypervisor when accessing the Task Priority Register, which helps when running certain types of SMP guests.

vnmi – Intel Virtual NMI feature which helps with certain sorts of interrupt events in guests.

DISPLAY INFORMATION ONLY FOR THE FIRST CPU

# cpuinfo -1



Here is complete information about one of cpu:

CPU:

vendor_id =  GenuineIntel

version information (1/eax):

processor type  = primary processor (0)

family          = Intel Pentium Pro/II/III/Celeron/Core/Core 2/Atom, AMD Athlon/Duron, Cyrix M2, VIA C3 (6)

model           = 0xd (13)

stepping id     = 0x7 (7)

extended family = 0x0 (0)

extended model  = 0x2 (2)

(simple synth)  = Intel Core i7-3800/3900 (Sandy Bridge-E C2) / Xeon E5-1600/2600 (Sandy Bridge-E C2/M1), 32nm

miscellaneous (1/ebx):

process local APIC physical ID = 0x3 (3)

cpu count                      = 0x20 (32)

CLFLUSH line size              = 0x8 (8)

brand index                    = 0x0 (0)

brand id = 0x00 (0): unknown

feature information (1/edx):

x87 FPU on chip                        = true

virtual-8086 mode enhancement          = true

debugging extensions                   = true

page size extensions                   = true

time stamp counter                     = true

RDMSR and WRMSR support                = true

physical address extensions            = true

machine check exception                = true

CMPXCHG8B inst.                        = true

APIC on chip                           = true

SYSENTER and SYSEXIT                   = true

memory type range registers            = true

PTE global bit                         = true

machine check architecture             = true

conditional move/compare instruction   = true

page attribute table                   = true

page size extension                    = true

processor serial number                = false

CLFLUSH instruction                    = true

debug store                            = true

thermal monitor and clock ctrl         = true

MMX Technology                         = true

FXSAVE/FXRSTOR                         = true

SSE extensions                         = true

SSE2 extensions                        = true

self snoop                             = true

hyper-threading / multi-core supported = true

therm. monitor                         = true

IA64                                   = false

pending break event                    = true

feature information (1/ecx):

PNI/SSE3: Prescott New Instructions     = true

PCLMULDQ instruction                    = true

64-bit debug store                      = true

MONITOR/MWAIT                           = true

CPL-qualified debug store               = true

VMX: virtual machine extensions         = true

SMX: safer mode extensions              = true

Enhanced Intel SpeedStep Technology     = true

thermal monitor 2                       = true

SSSE3 extensions                        = true

context ID: adaptive or shared L1 data  = false

FMA instruction                         = false

CMPXCHG16B instruction                  = true

xTPR disable                            = true

perfmon and debug                       = true

process context identifiers             = true

direct cache access                     = true

SSE4.1 extensions                       = true

SSE4.2 extensions                       = true

extended xAPIC support                  = true

MOVBE instruction                       = false

POPCNT instruction                      = true

time stamp counter deadline             = true

AES instruction                         = true

XSAVE/XSTOR states                      = true

OS-enabled XSAVE/XSTOR                  = true

AVX: advanced vector extensions         = true

F16C half-precision convert instruction = false

RDRAND instruction                      = false

hypervisor guest status                 = false

cache and TLB information (2):

0x5a: data TLB: 2M/4M pages, 4-way, 32 entries

0x03: data TLB: 4K pages, 4-way, 64 entries

0x76: instruction TLB: 2M/4M pages, fully, 8 entries

0xff: cache data is in CPUID 4

0xb2: instruction TLB: 4K, 4-way, 64 entries

0xf0: 64 byte prefetching

0xca: L2 TLB: 4K, 4-way, 512 entries

processor serial number: 0002-06D7-0000-0000-0000-0000

deterministic cache parameters (4):

— cache 0 —

cache type                           = data cache (1)

cache level                          = 0x1 (1)

self-initializing cache level        = true

fully associative cache              = false

extra threads sharing this cache     = 0x1 (1)

extra processor cores on this die    = 0xf (15)

system coherency line size           = 0x3f (63)

physical line partitions             = 0x0 (0)

ways of associativity                = 0x7 (7)

WBINVD/INVD behavior on lower caches = false

inclusive to lower caches            = false

complex cache indexing               = false

number of sets – 1 (s)               = 63

— cache 1 —

cache type                           = instruction cache (2)

cache level                          = 0x1 (1)

self-initializing cache level        = true

fully associative cache              = false

extra threads sharing this cache     = 0x1 (1)

extra processor cores on this die    = 0xf (15)

system coherency line size           = 0x3f (63)

physical line partitions             = 0x0 (0)

ways of associativity                = 0x7 (7)

WBINVD/INVD behavior on lower caches = false

inclusive to lower caches            = false

complex cache indexing               = false

number of sets – 1 (s)               = 63

— cache 2 —

cache type                           = unified cache (3)

cache level                          = 0x2 (2)

self-initializing cache level        = true

fully associative cache              = false

extra threads sharing this cache     = 0x1 (1)

extra processor cores on this die    = 0xf (15)

system coherency line size           = 0x3f (63)

physical line partitions             = 0x0 (0)

ways of associativity                = 0x7 (7)

WBINVD/INVD behavior on lower caches = false

inclusive to lower caches            = false

complex cache indexing               = false

number of sets – 1 (s)               = 511

— cache 3 —

cache type                           = unified cache (3)

cache level                          = 0x3 (3)

self-initializing cache level        = true

fully associative cache              = false

extra threads sharing this cache     = 0x1f (31)

extra processor cores on this die    = 0xf (15)

system coherency line size           = 0x3f (63)

physical line partitions             = 0x0 (0)

ways of associativity                = 0x13 (19)

WBINVD/INVD behavior on lower caches = false

inclusive to lower caches            = true

complex cache indexing               = true

number of sets – 1 (s)               = 16383

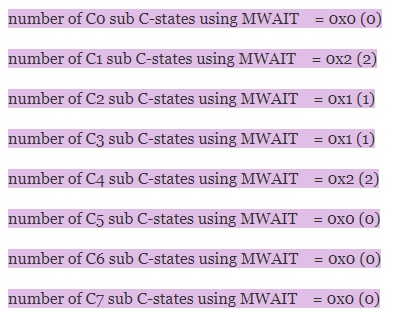

MONITOR/MWAIT (5):

smallest monitor-line size (bytes)       = 0x40 (64)

largest monitor-line size (bytes)        = 0x40 (64)

enum of Monitor-MWAIT exts supported     = true

supports intrs as break-event for MWAIT  = true



















Thermal and Power Management Features (6):

digital thermometer                     = true

Intel Turbo Boost Technology            = false

ARAT always running APIC timer          = true

PLN power limit notification            = true

ECMD extended clock modulation duty     = true

PTM package thermal management          = true

digital thermometer thresholds          = 0x2 (2)

ACNT/MCNT supported performance measure = true

ACNT2 available                         = false

performance-energy bias capability      = true

extended feature flags (7):

FSGSBASE instructions                    = false

IA32_TSC_ADJUST MSR supported            = false

BMI instruction                          = false

HLE hardware lock elision                = false

AVX2: advanced vector extensions 2       = false

SMEP supervisor mode exec protection     = false

BMI2 instructions                        = false

enhanced REP MOVSB/STOSB                 = false

INVPCID instruction                      = false

RTM: restricted transactional memory     = false

QM: quality of service monitoring        = false

deprecated FPU CS/DS                     = false

intel memory protection extensions       = false

AVX512F: AVX-512 foundation instructions = false

RDSEED instruction                       = false

ADX instructions                         = false

SMAP: supervisor mode access prevention  = false

Intel processor trace                    = false

AVX512PF: prefetch instructions          = false

AVX512ER: exponent & reciprocal instrs   = false

AVX512CD: conflict detection instrs      = false

SHA instructions                         = false

PREFETCHWT1                              = false

Direct Cache Access Parameters (9):

PLATFORM_DCA_CAP MSR bits = 1

Architecture Performance Monitoring Features (0xa/eax):

version ID                               = 0x3 (3)

number of counters per logical processor = 0x4 (4)

bit width of counter                     = 0x30 (48)

length of EBX bit vector                 = 0x7 (7)

Architecture Performance Monitoring Features (0xa/ebx):

core cycle event not available           = false

instruction retired event not available  = false

reference cycles event not available     = false

last-level cache ref event not available = false

last-level cache miss event not avail    = false

branch inst retired event not available  = false

branch mispred retired event not avail   = false

Architecture Performance Monitoring Features (0xa/edx):

number of fixed counters    = 0x3 (3)

bit width of fixed counters = 0x30 (48)

x2APIC features / processor topology (0xb):

— level 0 (thread) —

bits to shift APIC ID to get next = 0x1 (1)

logical processors at this level  = 0x2 (2)

level number                      = 0x0 (0)

level type                        = thread (1)

extended APIC ID                  = 3

— level 1 (core) —

bits to shift APIC ID to get next = 0x5 (5)

logical processors at this level  = 0x10 (16)

level number                      = 0x1 (1)

level type                        = core (2)

extended APIC ID                  = 3

XSAVE features (0xd/0):

XCR0 lower 32 bits valid bit field mask = 0x00000007

bytes required by fields in XCR0        = 0x00000340 (832)

bytes required by XSAVE/XRSTOR area     = 0x00000340 (832)

XCR0 upper 32 bits valid bit field mask = 0x00000000

YMM features (0xd/2):

YMM save state byte size                = 0x00000100 (256)

The YMM save state byte offset              = 0x00000240 (576)

LWP features (0xd/0x3e):

LWP save state byte size                = 0x00000000 (0)

The LWP save state byte offset              = 0x00000000 (0)

extended feature flags (0x80000001/edx):

SYSCALL and SYSRET instructions        = true

execution disable                      = true

1-GB large page support                = true

RDTSCP                                 = true

64-bit extensions technology available = true

Intel feature flags (0x80000001/ecx):

LAHF/SAHF supported in 64-bit mode     = true

LZCNT advanced bit manipulation        = false

3DNow! PREFETCH/PREFETCHW instructions = false

brand =         Intel(R) Xeon(R) CPU E5-2650 0 @ 2.00GHz

L1 TLB/cache information: 2M/4M pages & L1 TLB (0x80000005/eax):

instruction # entries     = 0x0 (0)

instruction associativity = 0x0 (0)

data # entries            = 0x0 (0)

data associativity        = 0x0 (0)

L1 TLB/cache information: 4K pages & L1 TLB (0x80000005/ebx):

instruction # entries     = 0x0 (0)

instruction associativity = 0x0 (0)

data # entries            = 0x0 (0)

data associativity        = 0x0 (0)

L1 data cache information (0x80000005/ecx):

line size (bytes) = 0x0 (0)

lines per tag     = 0x0 (0)

associativity     = 0x0 (0)

size (Kb)         = 0x0 (0)

L1 instruction cache information (0x80000005/edx):

line size (bytes) = 0x0 (0)

lines per tag     = 0x0 (0)

associativity     = 0x0 (0)

size (Kb)         = 0x0 (0)

L2 TLB/cache information: 2M/4M pages & L2 TLB (0x80000006/eax):

instruction # entries     = 0x0 (0)

instruction associativity = L2 off (0)

data # entries            = 0x0 (0)

data associativity        = L2 off (0)

L2 TLB/cache information: 4K pages & L2 TLB (0x80000006/ebx):

instruction # entries     = 0x0 (0)

instruction associativity = L2 off (0)

data # entries            = 0x0 (0)

data associativity        = L2 off (0)

L2 unified cache information (0x80000006/ecx):

line size (bytes) = 0x40 (64)

lines per tag     = 0x0 (0)

associativity     = 8-way (6)

size (Kb)         = 0x100 (256)

L3 cache information (0x80000006/edx):

line size (bytes)     = 0x0 (0)

lines per tag         = 0x0 (0)

associativity         = L2 off (0)

size (in 512Kb units) = 0x0 (0)

Advanced Power Management Features (0x80000007/edx):

temperature sensing diode      = false

frequency ID (FID) control     = false

voltage ID (VID) control       = false

thermal trip (TTP)             = false

thermal monitor (TM)           = false

software thermal control (STC) = false

100 MHz multiplier control     = false

hardware P-State control       = false

TscInvariant                   = true

Physical Address and Linear Address Size (0x80000008/eax):

maximum physical address bits         = 0x2e (46)

maximum linear (virtual) address bits = 0x30 (48)

The maximum guest physical address bits   = 0x0 (0)

Logical CPU cores (0x80000008/ecx):

number of CPU cores – 1 = 0x0 (0)

ApicIdCoreIdSize        = 0x0 (0)

(multi-processing synth): multi-core (c=8), hyper-threaded (t=2)

(multi-processing method): Intel leaf 0xb

(APIC widths synth): CORE_width=5 SMT_width=1

(APIC synth): PKG_ID=0 CORE_ID=1 SMT_ID=1

(synth) = Intel Xeon E5-1600/2600 (Sandy Bridge-E C2/M1), 32nm

lscpu command example

You will get information about your CPU Architecture on Linux:

$ lscpu



Sample outputs:

Architecture:          x86_64

CPU op-mode(s):        32-bit, 64-bit

Byte Order:            Little Endian

CPU(s):                32

On-line CPU(s) list:   0-31

Thread(s) per core:    2

Core(s) per socket:    8

Socket(s):             2

NUMA node(s):          2

Vendor ID:             GenuineIntel

CPU family:            6

Model:                 45

Stepping:              7

CPU MHz:               2000.063

BogoMIPS:              4001.39

Virtualization:        VT-x

L1d cache:             32K

L1i cache:             32K

L2 cache:              256K

L3 cache:              20480K

NUMA node0 CPU(s):     0-7,16-23

NUMA node1 CPU(s):     8-15,24-31

Of course you can also extract information from /proc/cpuinfo and /dev/cpu/* files:

$ less /proc/cpuinfo
